NP5 / HOUSE COLLECTION
Four pitched-roof concepts, each with its own plan and character.
01 / CHOOSE YOUR CUPCAKE
Choose a model to see its own image, reference areas and plan.

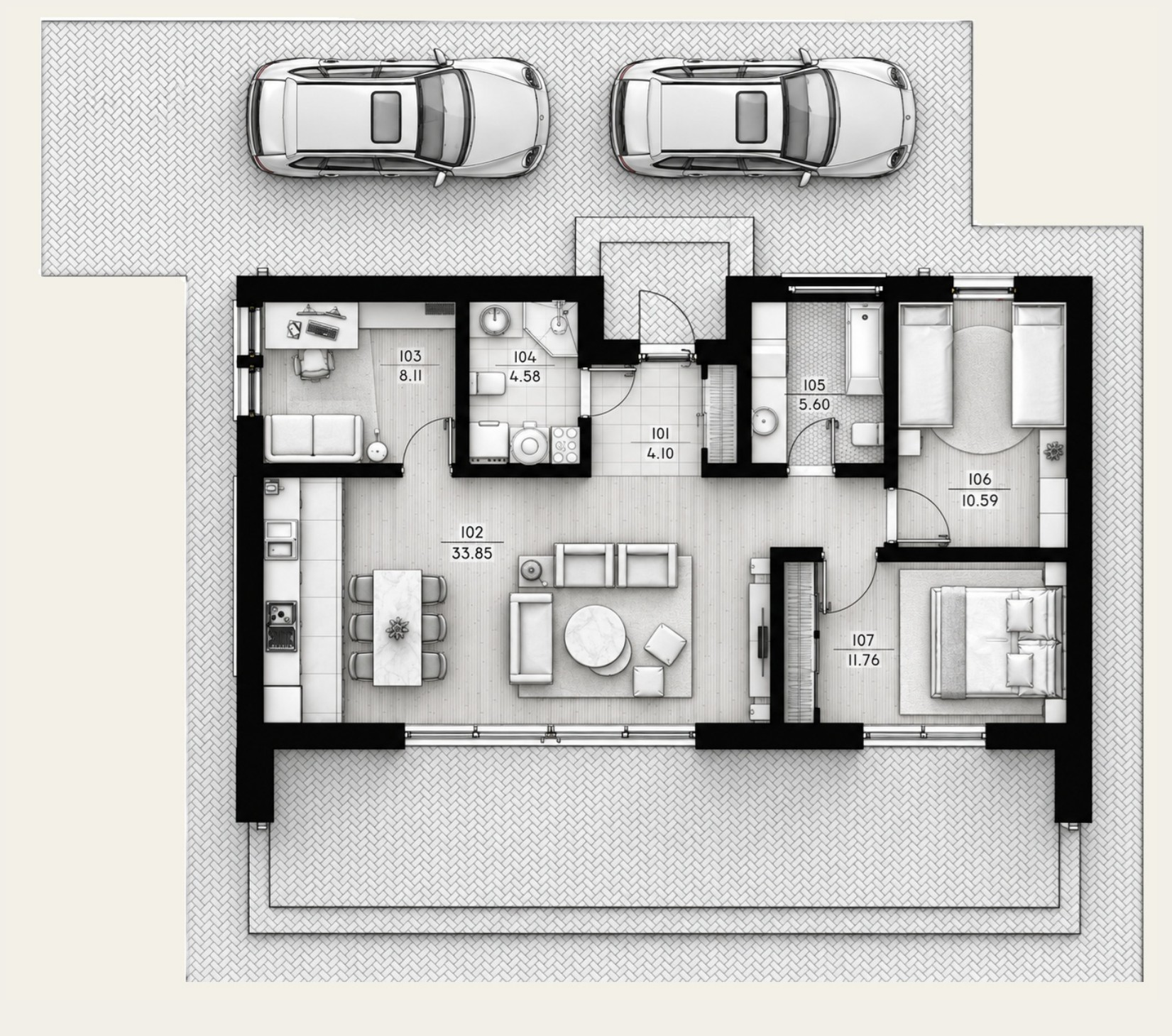

Pitched roof / 1 storey
A compact single-storey house concept with an open living area and two bedrooms in the illustrated plan.
Reference areas from the catalogue. Final dimensions and specification are confirmed for the project.
Pitched roof / 1 storey
A single-storey concept with an integrated garage and covered parking, as illustrated in the original plan.
Reference areas from the catalogue. Final dimensions and specification are confirmed for the project.

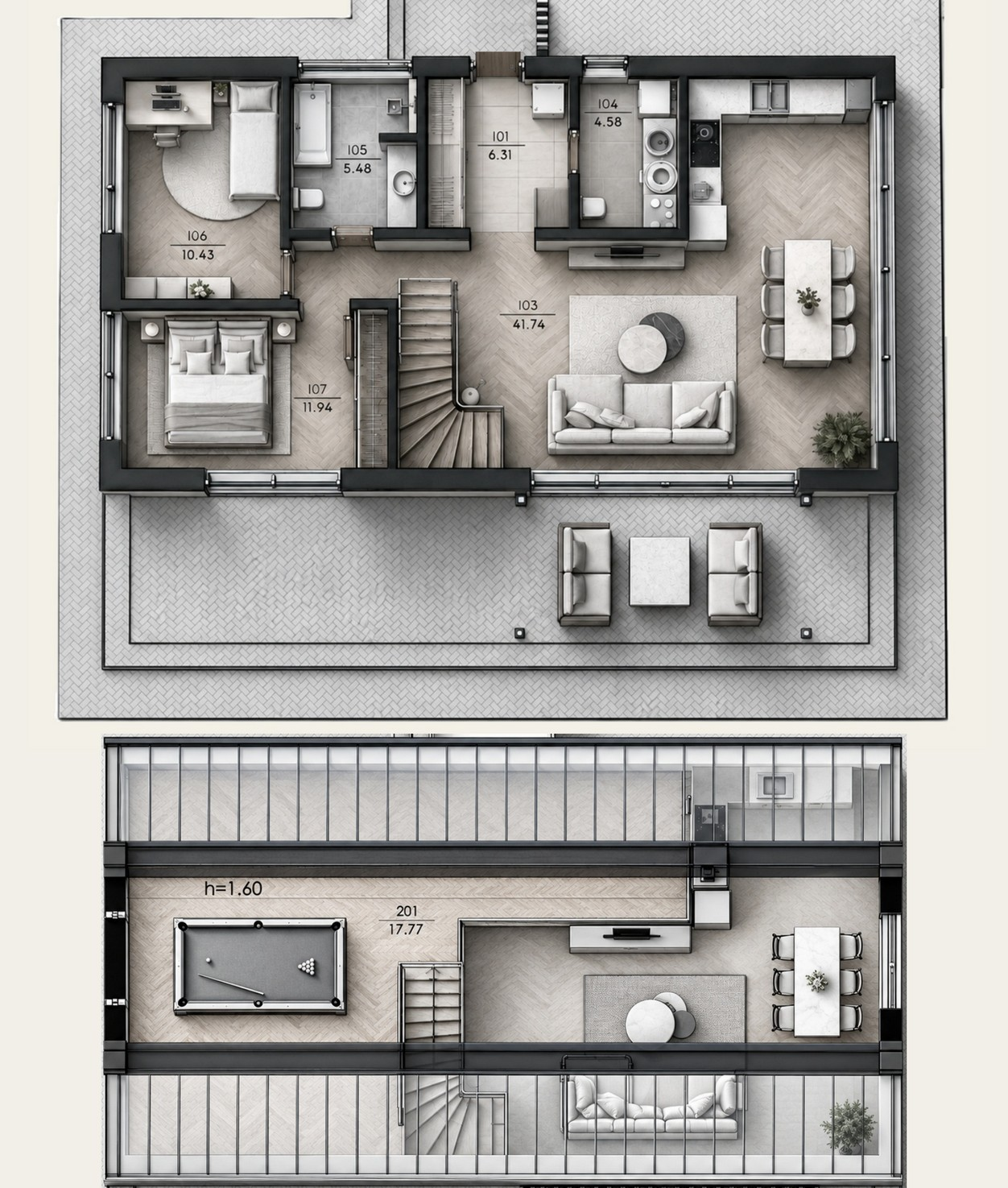

Pitched roof / 1 + M
A pitched-roof concept with a mezzanine. The original drawings show two connected living levels.
Reference areas from the catalogue. Final dimensions and specification are confirmed for the project.

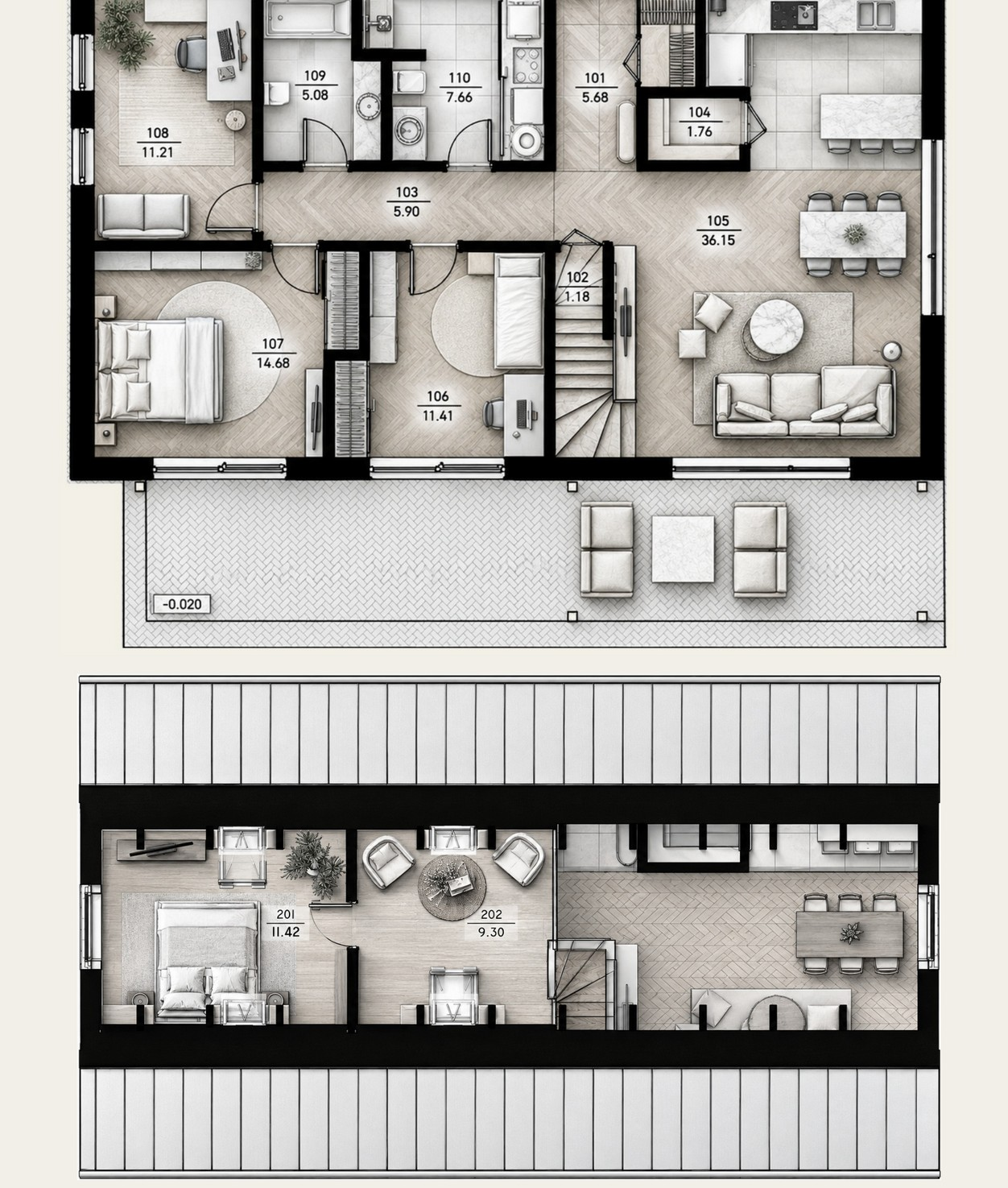

Pitched roof / 1 + M
A larger pitched-roof concept with additional upper-level rooms and a generous ground-floor living space.
Reference areas from the catalogue. Final dimensions and specification are confirmed for the project.
02 / PLAN YOUR SPACE
Open the original drawing to inspect the layout. Terraces, furniture and landscaped areas are illustrative unless included in the agreed scope.
Reference model dimensions and catalogue area labels. Final usable areas and project dimensions are confirmed during design.
Reference in catalogue · p. 3 ↗︎Reference model dimensions and catalogue area labels. Final usable areas and project dimensions are confirmed during design.
Reference in catalogue · p. 6 ↗︎Main-floor and mezzanine areas are shown separately. Final usable areas are confirmed during project design.
Reference in catalogue · p. 9 ↗︎Reference model dimensions and catalogue area labels. Final usable areas and project dimensions are confirmed during design.
Reference in catalogue · p. 12 ↗︎MATERIAL CHARACTER
Reference samples from the existing catalogue. Final products, colours and compatible wall build-ups are specified for your project.
Select a sample to add a preference to your project brief. This is not a live facade rendering.
YOUR HOME, STEP BY STEP
Explore the model, original plans, construction references and finishes. Keep your choices in one configuration and carry them into a project enquiry.
Configure Your Home ↗︎Original NP5 imagery. Missing exact variants are labelled. No automatic price calculation.
YOUR PROJECT PREFERENCES
Choose a direction for discussion. These preferences do not change the reference images or generate a price.
ARCHITECTURE / ORIGINAL VISUALISATIONS
Gallery images follow the selected model. Material preferences do not alter these reference views.
THE NP5 PANELISED APPROACH
Wall and roof elements are prepared for assembly on site. The panelised ground-floor solution uses a prepared reinforced-concrete slab, not a separate prefabricated ground-floor panel.
The final panel arrangement, wall build-up, junctions and installation sequence are coordinated with the project design and local requirements.
For Architects & DevelopersFROM A CONCEPT TO YOUR SITE
Share the model, location and intended use.
Align the design, local requirements and supply scope.
Coordinate the structure, junctions and foundations.
Prepare the agreed LGS building elements.
Plan transport, site access and unloading.
Install on the prepared slab to the agreed scope.
KEEP THE DETAILS
Explore the original plans, architectural views and material references in one place.
English · 19 pages · PDF · No registration
LET US DISCUSS YOUR PROJECT
Share the location, your preferred model and the scope you need.
